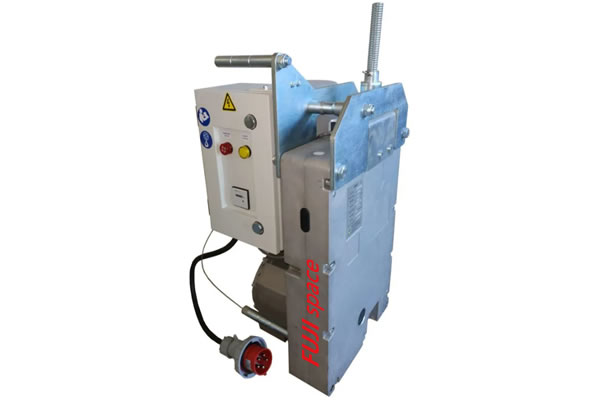

Pass-through assembly winch 2000 kg model LTD200 E / D
▊ GP-2000 kg.
▊ Power – 4.0 KW / 8.8A | 6.2 KW / 13A
▊ Power cord - 3*4+2*2.5
▊ Cable thickness - 14 mm.
▊ Lifting speed – 6 / 12 m/min.
▊ Lowering speed – 7 / 13 m/min.
▊ Voltage - 380V, 50Hz, 3 phases.
▊ Control - Manual control
▊ Additionally - Remote control (optional).
▊ Weight - 113 kg.
▊ Manufacturer's price
▊Pre-order
Description
▊ The LTD-200 lift is designed for use with unlimited length steel ropes for lifting and lowering people. It has a lifting capacity of 2000 kg at a speed of 6 or 12 m/min.
The LTD-200 series passenger lift with unlimited steel rope is the best alternative to the Tractel TIRAK X2000 available on the market.
▊ Features and Benefits
The robust, precision-machined die-cast aluminum housing ensures low dead weight and exceptional rigidity.
The pinion and drive pulley are made of hardened steel.
Universal winch mounting is possible via a 30 mm central load pin or two M16 screws.
Motor protection is standard IP55 protection.
The standard operating voltage of the LTD-P series is 380 V, 3 phases, 50 Hz
The control voltage is 24 V for mobile devices and 42 V for stationary models.
Phase monitoring: included as standard on models with a mobile app, not available for stationary devices.
The hoist motor is equipped with a thermal overload protection device as standard.
Certified by an independent inspection institute (TUV)
Drive pulley and pressure rollers made of special nitrided steel with a surface hardness of approx. 70 HRC, which guarantees low wear on these components.
Fully synthetic special oil ensures the highest possible efficiency for quiet operation in a temperature range from -40°C to +70°C.
Standardized components provide easy access to all wearing parts.
Passenger safety
According to DIN EN1808, every lift used for lifting passengers must have a safety system on an independent safety rope. We offer two different fall protection devices for two common applications. Both types have been approved for lifting passengers and comply with DIN EN 1808 "Safety requirements for suspended equipment". In addition, the fall protection devices are certified by an independent inspection institute (TUV).
▊ Flexible mounting points
Mounting points at the corners of the housing are available for flexible mounting of the winch using screws or pins.
▊ Safety lowering mechanism
In the event of a power failure, the electromechanical brake can be released manually to ensure a safe and controlled lowering of the load.
▊ Internal mechanism overload
When the load acting on the lift reaches or exceeds the load limit, the lift stops lifting or only lowers.
▊Counters
Record the hours of operation and the number of starts.
▊Options
Other operating voltages on request.
Dual control of multiple lifts
Radio remote control.
Limit switch for upward movement.
Hour counters and start counters.
Fall protection device (overspeed or rollover protection, required for passenger lifts)
Adapter for bracket mounting or adapter for installation on lift.

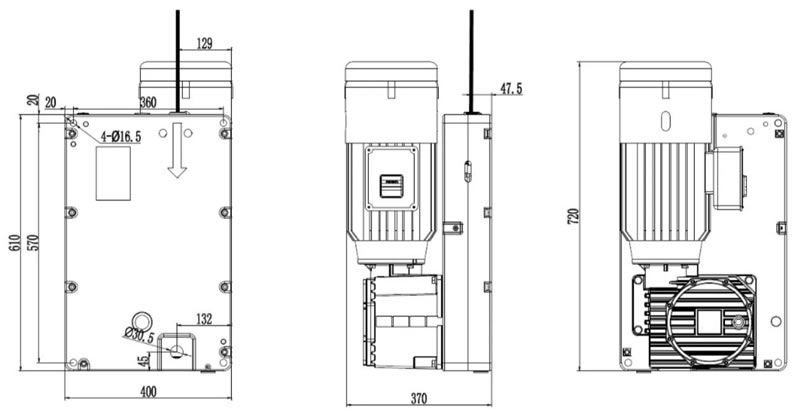

▊Dimensions
