FUJI space panoramic elevator, with and without engine room, as well as various shapes and configurations. The FUJI space panoramic elevator is installed inside, in the atrium, or outside of the building.

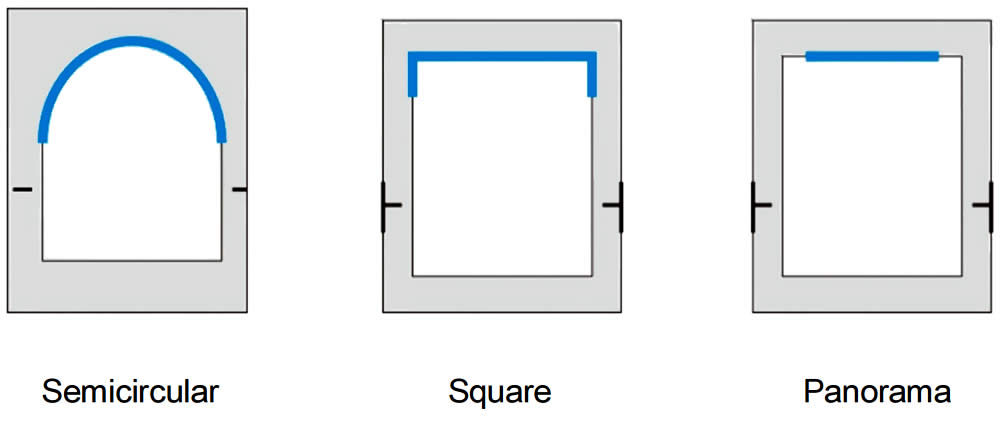

Panoramic elevators come in different shapes and structures:
1. Areas of Application
2. Residential complexes - low-rise and high-rise buildings
3. Administrative buildings
4. Office buildings and business centers
5. Hotel complexes
6. Commercial and entertainment complexes
7. Medical and preventive institutions - polyclinics, hospitals, sanatoriums
8. Industrial complexes
9. Railway station
10. Airport
11. Subway
12. Cottage
The FUJI space panoramic elevator is safe, fast and reliable, with a maximum lifting height of 90 meters.
| Component/Function | Description |
Control system | Internal push - button type, capable of calling the elevator car to any floor. The command can be cancelled by pressing the button twice. Group control and individual control functions are included in the basic configuration. |
Door safety device (photoelectric element with reverse function) | Infrared modules (infrared curtains, photoelectric elements, infrared barriers) with reverse function. When in contact with passengers or objects, the doors will stop and reopen. The elevator will not operate until the door is fully closed. In case of overheating of the electrical part of the infrared module, the mechanical manual lock will be activated. |
Automatic shutdown of lighting and ventilation | Lighting and fan are automatically turned off to save energy if no calls are received within a certain time. |
Door lock | When the door is open, the locker installed in the door drive is activated and does not allow the cabin to move. During the operation of the elevator, it completely locks the door so that it cannot be opened from the outside. |
Automatic skipping of floors | If the cabin is loaded at 80%, the elevator will automatically ignore all calls from the floors, since the floor call pass system will be activated automatically. |
Stop at overload | To protect the elevator from overload, this device gives an audible signal and the elevator does not start until the number of passengers exceeds the installed capacity. After the extra passengers leave the cabin, the signal stops and the elevator door closes. |
Fire alarm system | In case of fire, the elevator goes down to the landing floor opens the doors and no longer goes anywhere, until the fire alarm is turned off. |
Fire elevator and mode of transportation of fire units | for lifts of this type this mode is not applied. |
Seismicity sensor (optional) | In an earthquake, the elevator goes down to the landing floor opens the doors and no longer goes anywhere, ignoring all orders, until the earthquake stops while the sensor is active. |
Emergency lighting system | Triggered by a power outage |
ARD | ARD system - Automatic emergency rescue device (option) - if the power is cut off, the elevator will reach the nearest floor and open the doors, passengers will be able to get out. |
VM alert system | Voice alert system, and music in the elevator cabin. |
Elevator for MIGN | FUJI space elevators comply with the standard of "Passenger elevators. Technical accessibility requirements, including accessibility for disabled people and other low-mobility groups of the population" |
| Function | Description |
Screen elevator cabin position inside cabin | Indicating the movement of the elevator cabin or the position of the cabin on the floor, as well as an error or emergency alert. |
Close button and opening doors | As standard. |
Delay in opening doors | Adjustable, can be adjusted to keep the door open up to 1 min. |
Order panel location and button location | Intended for teenagers and people with limited mobility. |
Call panel on floors | Button panels with matrix screen on each floor indicate the position of the elevator on the floor or its movement, as well as the service mode and fire mode. |
| Component | Description |
Cabin movement mechanism | Cable mechanism and belt |
Engine | Asynchronous Energy Saving Motor |
Voltage / current parameters | 380V/220V-50Hz |
Control Station | Innovative low noise elevator control station SPACE-E Model X and Model Y for elevators with machine room. Setting up the control station SPACE-E Model X and Model Y is made by installing special software on the phone with the ability to connect to the elevator control station via Bluetooth |
*Possible production of non-standard elevators
Model | Load capacity （kg） | Minimum-Maximum speed （m/s） | tandard dimensions of the elevator car (w* d* h) | Door dimensions (w * h) | Type of door opening | Fire resistance of the elevator shaft doors | Motor model | Control station model |
TGJ-450 | 450 | 0,4-1,75 | 1100*1000*2300 1000*1100*2300 | 700*2100 800*2100 | Central (CO) Telescopic (SO) | E30 | GTW FRD GETM | TKJ |
TGJ-630 | 630 | 0,4-2 | 1200*1300*2300 1300*1200*2300 1100*1400*2300 1400*1100*2300 | 800*2100 900*2100 1000*2100 | Central (CO) Telescopic (SO) Telescopic (SO) | E30 | GTW FRD GETM | TKJ |
TGJ-1000 | 1000-1050 | 0,4-2,5 | 1100*2100*2300 2100*1300*2300 2100*1100*2300 | 900*2100 1000*2100 1100*2100 1200*2100 | Central (CO) Central (CO) Telescopic (SO) Telescopic (SO) | E30 | GTW FRD GETM | TKJ |
TGJ-1250 | 1250 | 0,4-2,5 | 1200*2200*2300 2200*1200*2300 1500*1600*2300 | 1100*2100 1200*2100 1200*2100 1300*2100 | Central (CO) Central (CO) Telescopic (SO) Telescopic (SO) | E30 | GTW FRD GETM | TKJ |
TGJ-1350 | 1350 | 0,4-2,5 | 1300*2250*2300 2200*1400*2300 1600*1700*2300 | 1100*2100 1200*2100 1200*2100 1300*2100 | Central (CO) Central (CO) Telescopic (SO) Telescopic (SO) | E30 | GTW FRD GETM | TKJ |
TGJ-1600 | 1600 | 0,4-2,5 | 1400*2300*2300 2300*1500*2300 1700*1950*2300 | 1100*2100 1200*2100 1200*2100 1300*2100 | Central (CO) Central (CO) Telescopic (SO) Telescopic (SO) | E30 | GTW FRD GETM | TKJ |
TGJ-2000 | 2000 | 0,4-2,5 | 1950*1700*2300 2300*1600*2300 | 1100*2100 1200*2100 1200*2100 1300*2100 | Central (CO) Central (CO) Telescopic (SO) Telescopic (SO) | E30 | GTW FRD GETM | TKJ |
