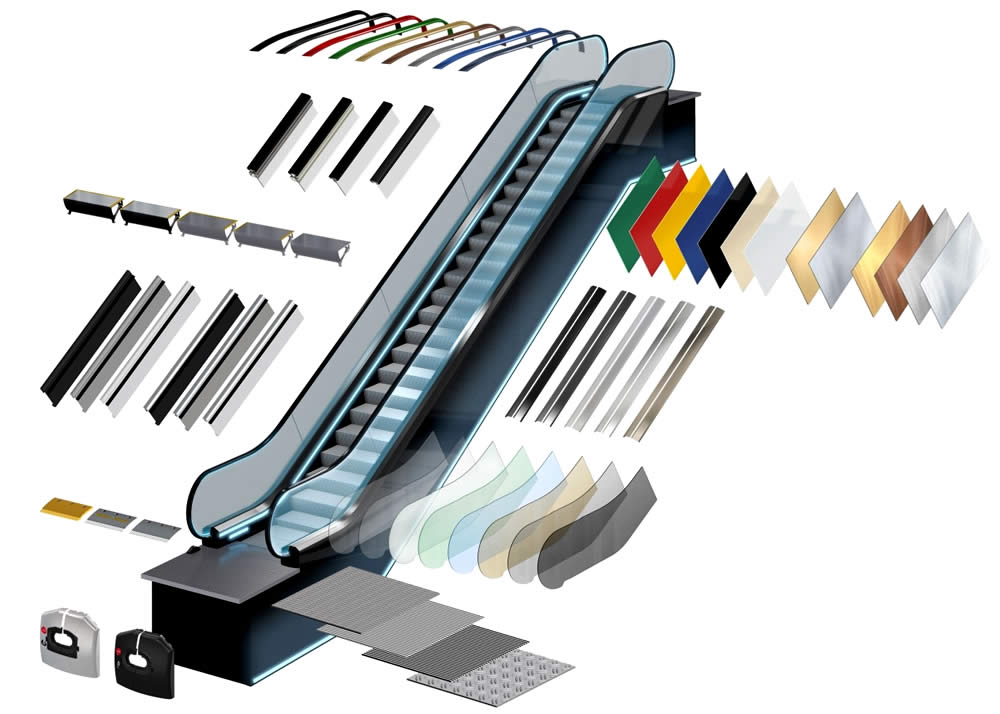

Advantages of the FUJI space Escalator

1. Stronger Form

The frame of the FUJI space escalator is welded from square pipes with a hermetically welded plate, which prevents the leakage of water and oil. With high stability and strength, this structure significantly extends the service life of the escalator.

2. Step System

The structure consists of a galvanized guide rail, a high-strength and wear-resistant polyurethane roller, and a high-strength plate chain. It is resistant to corrosion and has a long service life of 20 years under continuous 24/7 operation.

3. Solution for Outdoor Installation

It allows operation in an ambient temperature range from -25 °C to 40 °C. It has an electrical protection degree of IP54 and the motor protection degree is IP55.

4. Safety

It strictly complies with GB/I6899-2011 "Safety Standards for the Manufacturing and Installation of Automatic Escalators and Moving Walkways" and other current Chinese and European standards. All necessary safety devices are installed; the use of microcomputer control technology ensures contactless control and safe and reliable operation.

Scope of Application

--- Shopping and Entertainment Center

--- Business Center

--- Subway

--- Airport

--- Railway Station

--- Pedestrian Crossings

--- Hotel Complex

--- Exhibition Center

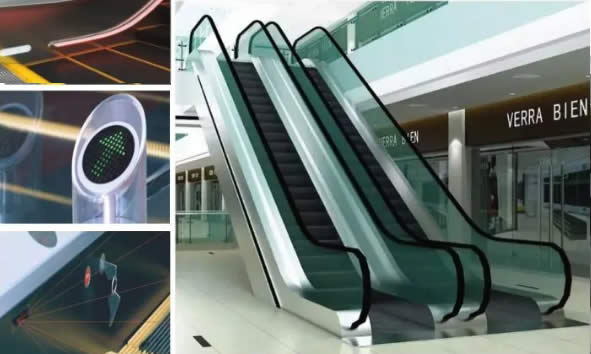

The functionality of the FUJI space escalator

Skirt panel brush

The skirting brush for the escalator skirting panel, which is installed on both sides of the escalator skirting panel and above the step, can prevent passengers' footwear from coming into contact with the skirting panel. At the same time, it enables the safe and effective prevention of foreign objects from getting into the gap between the step and the escalator skirting.

Fault display

When any malfunction is detected, the fault code will be displayed on the fault display screen. This ensures an effective and accurate determination of the location of the malfunction within the shortest possible time. In this way, the efficiency of maintenance and technical servicing is significantly increased.

Skirt panel brush

The modern design of the skirting panel is optional, which makes the FUJI space escalator even more attractive.

Automatic oiling

The automatic lubricant refilling and lubrication system, controlled by a PLC (Programmable Logic Controller), ensures perfect automatic lubrication of the transmission chain during the operation of the escalator.

Driver protection strand breaks

When the drive chain of the escalator is excessively stretched, the escalator will automatically stop to ensure safety.

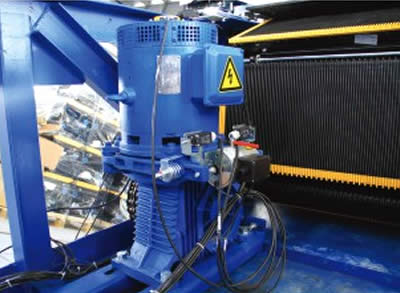

Vertical type traction machine

The smooth engagement and the frictional reduction guarantees the extremely  low noise. It can reduce more than 60% of the noise. Compared with the traditional worm wheel drive, it is of higher driving efficiency.

Skirt panel illumination

Along the the cascade running track streamlined skirting lighting light, at run time, not only to maintain the beam and beautiful at the same time stressed that the visibility of the escalators in the entire building and make passengers more comfortable ride and safety.

Handrail lighting

The lighting of the handrails and balustrades can improve the overall appearance of the escalator.

Intermittent operation(automatic start/stop)

Hidden within the new entrance to the sensors can detect the floor plate of the passengers,and began to run automatically, after will automatically stop, all passengers left to save energy.

Running direction indication

Running direction and the forbidden line display the logo placed handrail entrances to run or forbidden line indicates obvious, to ensure that passengers are safe and comfortable ride.

Comb

Eye-catching yellow plastic comb makes the ride of escalator more safe and more easy.

Heating device

Each escalator is usually equipped with three heating devices. One is located near the driving device in the upper machine room, mainly heating the motor and the control station. The second one is installed in the middle of the escalator. And the third one is at the lower part. Mainly, it heats the entire escalator.
