False elevator installation cabin
▊ False elevator cabin is one of the safest and most efficient ways to install elevator guides.
▊ Steel construction, fully adjustable for a wide range of lift sizes.
▊ Quick setup and installation
▊ Foldable for easy storage and transportation
▊ Safe and easy to reduce elevator installation costs and time!

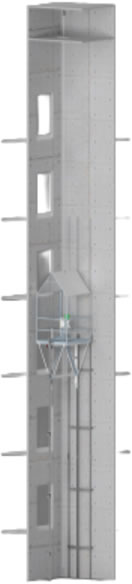

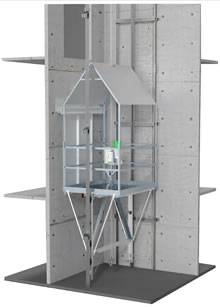

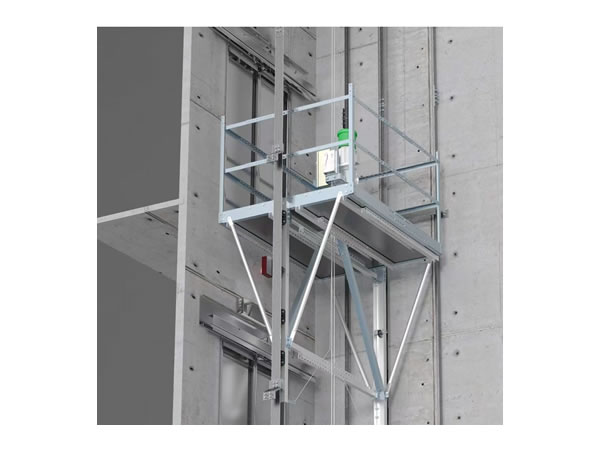

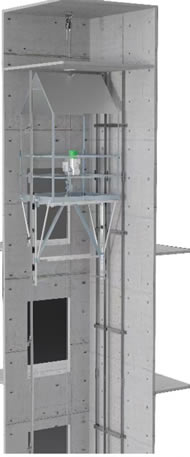

▊ False elevator cabin is a controlled working platform, which is powered by cable winches and equipped with several safety measures and is adjustable in a wide range of DBG distance between elevator guides and shaft depth size. This will provide workers with a safe and comfortable working platform and significantly reduce the time required to install elevator equipment.
Benefits
▊ With a false elevator cabin, you can install the elevator guides immediately after the floor slab is installed.
▊ Easy and fast assembly of the false cabin takes about 2 hours, regardless of the height of the building. And if you move it to the next shaft, it will take only half an hour, for comparison, scaffolding is installed for at least 20 days for buildings with a height of 100 m.
▊ Install elevator guides faster, easier and more efficiently, after installing the false cabin, just press the "Up" button, and the movement speed of 0.15 m / s allows workers to get to the workplace faster and easier. A stable and safe platform will help workers do their job more efficiently than using scaffolding or flooring.
▊ Cost savings for all future projects, one set of false cabin can be used from 5 to 10 years, this will save a lot of money during this period.
▊ Full adjustment of the false cabin is adjustable to all sizes of guides.
▊ Guaranteed safety: More than 3 separate and professional safety devices will significantly increase safety at work.
Technical specifications
▊ Speed 9-11 m/min
▊ Rope diameter - 10.2 mm
▊ Nominal capacity: 272 - 600 kg from different models of assembly winches.
▊ Standard size ranges:
▊ DBG (distance between guides) - 1200mm-2000mm 1700mm-3000; 2200mm-4000mm with the possibility of adjustment
▊ Depth - 1500mm-2000mm with the possibility of adjustment
▊ Safety measures - locking when exceeding the speed, catcher, canopy (options).
